F128R88減速機詳細信息
F128R88減速機
訂購熱線：13360667204
F128R88減速機電機功率：F128R88Y5.5KW減速機,F128R88Y7.5KW減速機,F128R88Y11KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
F128R88減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F128R88-Y5.5KW | 418 | 5.5KW | 3.50r/min | 13900N.m | 823kg | 86600N | 0.85 |
| F128R88-Y5.5KW | 374 | 5.5KW | 3.90r/min | 12500N.m | 823kg | 89500N | 0.95 |
| F128R88-Y5.5KW | 312 | 5.5KW | 4.70r/min | 10400N.m | 823kg | 90000N | 1.15 |
| F128R88-Y5.5KW | 293 | 5.5KW | 5.00r/min | 9770N.m | 823kg | 90000N | 1.25 |
| F128R88-Y5.5KW | 259 | 5.5KW | 5.60r/min | 8620N.m | 823kg | 90000N | 1.40 |
| F128R88-Y5.5KW | 223 | 5.5KW | 6.50r/min | 7450N.m | 823kg | 90000N | 1.60 |
F128R88減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F128R88-Y7.5KW | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| F128R88-Y7.5KW | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| F128R88-Y7.5KW | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| F128R88-Y7.5KW | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| F128R88-Y7.5KW | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
F128R88減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F128R88-Y11KW | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| F128R88-Y11KW | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| F128R88-Y11KW | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
F128R88減速器減速比：166比齒輪減速馬達,198比減速器,223比減速器,259比減速器,293比減速器,312比減速器,374比減速器,418比減速器。
F128R88減速機電機安裝尺寸：輸出軸Φ110+鍵6（可定做），高856*寬530*長906（帶輸出軸）
F128R88減速電機輸出轉數：3.5轉減速電機,3.9轉減速電機,4.7轉減速電機,5轉減速電機,5.6轉減速電機,5.7轉減速電機,6.5轉減速電機,6.6轉減速電機,7.4轉減速電機,7.5轉減速電機,8.9轉減速電機。
F128R88減速箱電機輸出扭矩：7450N.m減速箱,8620N.m減速箱,8930N.m減速箱,9770N.m減速箱,10100N.m減速箱,10400N.m減速箱,11000N.m減速箱,11700N.m減速箱,12500N.m減速箱,13100N.m減速箱,13200N.m減速箱,13900N.m減速箱,14100N.m減速箱,14800N.m平行軸斜齒輪減速機。

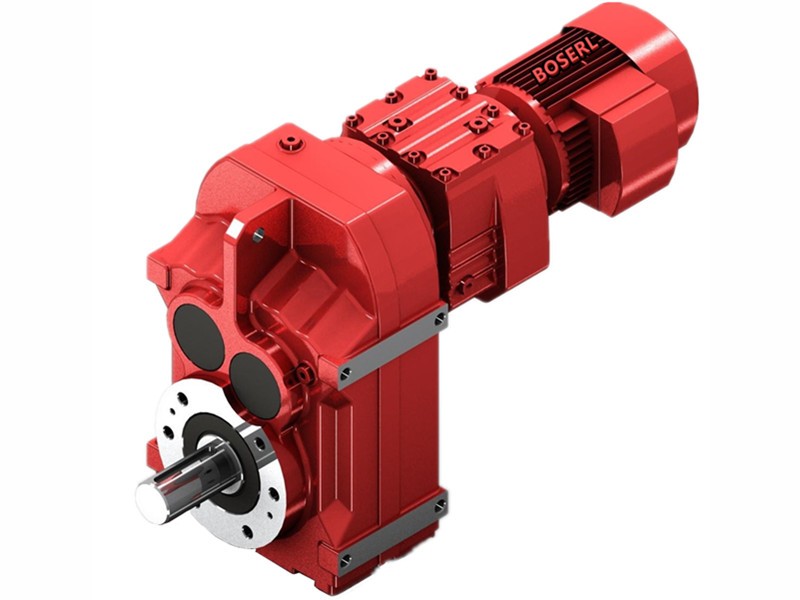

F128R88減速機電機各種輸出實物圖：
F128R88減速馬達型號：
FHZ127R87DM132L4,FHZ127R87DM132M4,FHZ127R87DM132MC4,FHZ127R87DM132ML4,FHZ127R87DM132S4,FHZ127R87DM160L4,FHZ127R87DM160M4,FHZ127R87DM160MC4,FHZ127R87DM160S4,FHZ127R87DR132L4,FHZ127R87DR132M4,FHZ127R87DR132MC4,FHZ127R87DR132ML4,FHZ127R87DR132S4,FHZ127R87DR160L4,FHZ127R87DR160M4,FHZ127R87DR160MC4,FHZ127R87DR160S4,FHZ127R87DRE132L4,FHZ127R87DRE132M4,FHZ127R87DRE132MC4,FHZ127R87DRE132ML4,FHZ127R87DRE132S4,FHZ127R87DRE160L4,FHZ127R87DRE160M4,FHZ127R87DRE160MC4,FHZ127R87DRE160S4,FHZ127R87DRN132L4,FHZ127R87DRN132M4,FHZ127R87DRN132MC4,FHZ127R87DRN132ML4,FHZ127R87DRN132S4,FHZ127R87DRN160L4,FHZ127R87DRN160M4,FHZ127R87DRN160MC4,FHZ127R87DRN160S4,FHZ127R87DRS132L4,FHZ127R87DRS132M4,FHZ127R87DRS132MC4,FHZ127R87DRS132ML4,FHZ127R87DRS132S4,FHZ127R87DRS160L4,FHZ127R87DRS160M4,FHZ127R87DRS160MC4,FHZ127R87DRS160S4,FHZ127R87DT132L4,FHZ127R87DT132M4,FHZ127R87DT132MC4,FHZ127R87DT132ML4,FHZ127R87DT132S4,FHZ127R87DT160L4,FHZ127R87DT160M4,FHZ127R87DT160MC4,FHZ127R87DT160S4,FHZ127R87DV132L4,FHZ127R87DV132M4,FHZ127R87DV132MC4,FHZ127R87DV132ML4,FHZ127R87DV132S4,FHZ127R87DV160L4,FHZ127R87DV160M4,FHZ127R87DV160MC4,FHZ127R87DV160S4,FHZ127R87DVE132L4,FHZ127R87DVE132M4,FHZ127R87DVE132MC4,FHZ127R87DVE132ML4,FHZ127R87DVE132S4,FHZ127R87DVE160L4,FHZ127R87DVE160M4,FHZ127R87DVE160MC4,FHZ127R87DVE160S4,FHZ127RF87-Y11KW,FHZ127RF87-Y132M4,FHZ127RF87-Y160M4,FHZ127RF87-Y5.5KW,FHZ127RF87-Y7.5KW,FHZ127RF87-YEJ11KW,FHZ127RF87-YEJ132M4,FHZ127RF87-YEJ160M4,FHZ127RF87-YEJ5.5KW,FHZ127RF87-YEJ7.5KW,FHZ127RF87-YVP11KW,FHZ127RF87-YVP132M4,FHZ127RF87-YVP160M4,FHZ127RF87-YVP5.5KW,FHZ127RF87-YVP7.5KW,FHZ127RF87-YVPEJ11KW,FHZ127RF87-YVPEJ132M4,FHZ127RF87-YVPEJ160M4,FHZ127RF87-YVPEJ5.5KW,FHZ127RF87-YVPEJ7.5KW,FVZ127R87DM132L4,FVZ127R87DM132M4,FVZ127R87DM132MC4,FVZ127R87DM132ML4,FVZ127R87DM132S4,FVZ127R87DM160L4,FVZ127R87DM160M4,FVZ127R87DM160MC4,FVZ127R87DM160S4,FVZ127R87DR132L4,FVZ127R87DR132M4,FVZ127R87DR132MC4,FVZ127R87DR132ML4,FVZ127R87DR132S4,FVZ127R87DR160L4,FVZ127R87DR160M4,FVZ127R87DR160MC4,FVZ127R87DR160S4,FVZ127R87DRE132L4,FVZ127R87DRE132M4,FVZ127R87DRE132MC4,FVZ127R87DRE132ML4,FVZ127R87DRE132S4,FVZ127R87DRE160L4,FVZ127R87DRE160M4,FVZ127R87DRE160MC4,FVZ127R87DRE160S4,FVZ127R87DRN132L4,FVZ127R87DRN132M4,FVZ127R87DRN132MC4,FVZ127R87DRN132ML4,FVZ127R87DRN132S4,FVZ127R87DRN160L4,FVZ127R87DRN160M4,FVZ127R87DRN160MC4,FVZ127R87DRN160S4,FVZ127R87DRS132L4,FVZ127R87DRS132M4,FVZ127R87DRS132MC4,FVZ127R87DRS132ML4,FVZ127R87DRS132S4,FVZ127R87DRS160L4,FVZ127R87DRS160M4,FVZ127R87DRS160MC4,FVZ127R87DRS160S4,FVZ127R87DT132L4,FVZ127R87DT132M4,FVZ127R87DT132MC4,FVZ127R87DT132ML4,FVZ127R87DT132S4,FVZ127R87DT160L4,FVZ127R87DT160M4,FVZ127R87DT160MC4,FVZ127R87DT160S4,FVZ127R87DV132L4,FVZ127R87DV132M4,FVZ127R87DV132MC4,FVZ127R87DV132ML4,FVZ127R87DV132S4,FVZ127R87DV160L4,FVZ127R87DV160M4,FVZ127R87DV160MC4,FVZ127R87DV160S4,FVZ127R87DVE132L4,FVZ127R87DVE132M4,FVZ127R87DVE132MC4,FVZ127R87DVE132ML4,FVZ127R87DVE132S4,FVZ127R87DVE160L4,FVZ127R87DVE160M4,FVZ127R87DVE160MC4,FVZ127R87DVE160S4,FVZ127RF87-Y11KW,FVZ127RF87-Y132M4,FVZ127RF87-Y160M4,FVZ127RF87-Y5.5KW,FVZ127RF87-Y7.5KW,FVZ127RF87-YEJ11KW,FVZ127RF87-YEJ132M4,FVZ127RF87-YEJ160M4,FVZ127RF87-YEJ5.5KW,FVZ127RF87-YEJ7.5KW,FVZ127RF87-YVP11KW,FVZ127RF87-YVP132M4,FVZ127RF87-YVP160M4,FVZ127RF87-YVP5.5KW,FVZ127RF87-YVP7.5KW,FVZ127RF87-YVPEJ11KW,FVZ127RF87-YVPEJ132M4,FVZ127RF87-YVPEJ160M4,FVZ127RF87-YVPEJ5.5KW,FVZ127RF87-YVPEJ7.5KW,FAZ127R87DM132L4,FAZ127R87DM132M4,FAZ127R87DM132MC4,FAZ127R87DM132ML4,FAZ127R87DM132S4,FAZ127R87DM160L4,FAZ127R87DM160M4,FAZ127R87DM160MC4,FAZ127R87DM160S4,FAZ127R87DR132L4,FAZ127R87DR132M4,FAZ127R87DR132MC4,FAZ127R87DR132ML4,FAZ127R87DR132S4,FAZ127R87DR160L4,FAZ127R87DR160M4,FAZ127R87DR160MC4,FAZ127R87DR160S4,FAZ127R87DRE132L4,FAZ127R87DRE132M4,FAZ127R87DRE132MC4,FAZ127R87DRE132ML4,FAZ127R87DRE132S4,FAZ127R87DRE160L4,FAZ127R87DRE160M4,FAZ127R87DRE160MC4,FAZ127R87DRE160S4,FAZ127R87DRN132L4,FAZ127R87DRN132M4,FAZ127R87DRN132MC4,FAZ127R87DRN132ML4,FAZ127R87DRN132S4,FAZ127R87DRN160L4,FAZ127R87DRN160M4,FAZ127R87DRN160MC4,FAZ127R87DRN160S4,FAZ127R87DRS132L4,FAZ127R87DRS132M4,FAZ127R87DRS132MC4,FAZ127R87DRS132ML4,FAZ127R87DRS132S4,FAZ127R87DRS160L4,FAZ127R87DRS160M4,FAZ127R87DRS160MC4,FAZ127R87DRS160S4,FAZ127R87DT132L4,FAZ127R87DT132M4,FAZ127R87DT132MC4,FAZ127R87DT132ML4,FAZ127R87DT132S4,FAZ127R87DT160L4,FAZ127R87DT160M4,FAZ127R87DT160MC4,FAZ127R87DT160S4,FAZ127R87DV132L4,FAZ127R87DV132M4,FAZ127R87DV132MC4,FAZ127R87DV132ML4,FAZ127R87DV132S4,FAZ127R87DV160L4,FAZ127R87DV160M4,FAZ127R87DV160MC4,FAZ127R87DV160S4,FAZ127R87DVE132L4,FAZ127R87DVE132M4,FAZ127R87DVE132MC4,FAZ127R87DVE132ML4,FAZ127R87DVE132S4,FAZ127R87DVE160L4,FAZ127R87DVE160M4,FAZ127R87DVE160MC4,FAZ127R87DVE160S4,FAZ127RF87-Y11KW,FAZ127RF87-Y132M4,FAZ127RF87-Y160M4,FAZ127RF87-Y5.5KW,FAZ127RF87-Y7.5KW,FAZ127RF87-YEJ11KW,FAZ127RF87-YEJ132M4,FAZ127RF87-YEJ160M4,FAZ127RF87-YEJ5.5KW,FAZ127RF87-YEJ7.5KW,FAZ127RF87-YVP11KW,FAZ127RF87-YVP132M4,FAZ127RF87-YVP160M4,FAZ127RF87-YVP5.5KW,FAZ127RF87-YVP7.5KW,FAZ127RF87-YVPEJ11KW,FAZ127RF87-YVPEJ132M4,FAZ127RF87-YVPEJ160M4,FAZ127RF87-YVPEJ5.5KW,FAZ127RF87-YVPEJ7.5KW。
F128R88減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.dongfangwy.com/product/list-fxiliejiansuji-cn.html
推薦型號：F128減速機
關鍵詞:GF型配減速器的電機一體式_F系列減速機_F系列減速器_減速機配電機_配減速器的電機_配減速機的電機_電機配減速機_GF系列減速機_F型減速機_F型平行軸斜齒輪減速機_減速器配電機
F系列齒輪減速馬達型號：F28減速機,F38減速機,F48減速機,F68減速機,F78減速機,F88減速機,F98減速機,F108減速機,F128減速機,F158減速機
F系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: FHZ127R87 FVZ127R87 FAZ127R87 F127RF87
