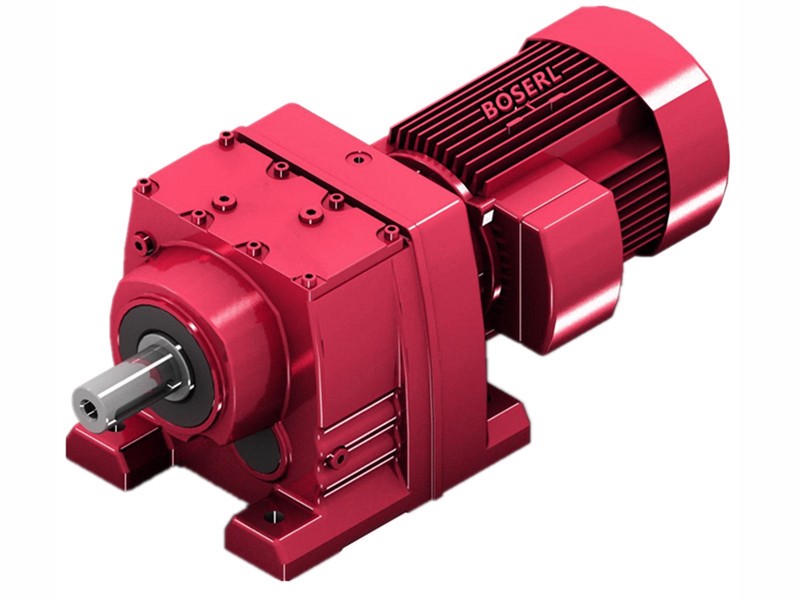

R108減速電機詳細信息
R108減速電機
訂購熱線：13360667204
R108減速電機功率計算公式：齒輪減速馬達
軌道車參數：輥輪直徑250，承重17噸，駛行一分鐘9米
9米÷（0.25輥輪直徑×3.14）=11.46轉每分鐘
17噸換算成N=170000N
170000×0.125輥輪半徑×0.3橡膠輪水泥路的摩擦系數=1275N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍1275×2=2550N.m
電機轉數1400÷輸出轉數11.46=122.16比
2550N.m輸出扭矩÷122.16比=20.87N.m電機扭矩
20.87N.m電機扭矩?fù)Q算成功率3.31KW以上
對應的R108減速機型號參數：
型號：R108-B4KW
減速比：127.68
輸出轉數：11轉每分鐘
輸出扭矩：3340N.m
安全系數：1.30
R108減速機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機
R108斜齒輪硬齒面減速機型號：
R108減速電機型號參數：同軸斜齒輪減速電機
R108減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y2.2KW | 2.2kw | 5.6rpm | 3760N.m | 1.15 |
| R107F-Y2.2KW | 2.2kw | 6.1rpm | 3450N.m | 1.25 |
| R107F-Y2.2KW | 2.2kw | 6.9rpm | 3040N.m | 1.4 |
| R107F-Y2.2KW | 2.2kw | 8.1rpm | 2580N.m | 1.65 |
| R107F-Y2.2KW | 2.2kw | 8.8rpm | 2380N.m | 1.8 |
| R107F-Y2.2KW | 2.2kw | 9.9rpm | 2120N.m | 2 |
| R107F-Y2.2KW | 2.2kw | 11rpm | 1910N.m | 2.2 |
| R107F-Y2.2KW | 2.2kw | 12rpm | 1730N.m | 2.5 |
| R107F-Y2.2KW | 2.2kw | 14rpm | 1530N.m | 2.8 |
| R107F-Y2.2KW | 2.2kw | 15rpm | 1390N.m | 3.1 |
R108減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y3KW | 3kw | 6.1rpm | 4700N.m | 0.9 |
| R107F-Y3KW | 3kw | 6.9rpm | 4150N.m | 1.05 |
| R107F-Y3KW | 3kw | 8.1rpm | 3520N.m | 1.2 |
| R107F-Y3KW | 3kw | 8.8rpm | 3240N.m | 1.3 |
| R107F-Y3KW | 3kw | 9.9rpm | 2900N.m | 1.5 |
| R107F-Y3KW | 3kw | 11rpm | 2610N.m | 1.65 |
| R107F-Y3KW | 3kw | 12rpm | 2360N.m | 1.8 |
| R107F-Y3KW | 3kw | 14rpm | 2090N.m | 2 |
| R107F-Y3KW | 3kw | 15rpm | 1890N.m | 2.3 |
| R107F-Y3KW | 3kw | 18rpm | 1600N.m | 2.7 |
| R107F-Y3KW | 3kw | 19rpm | 1490N.m | 2.9 |
R108減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y4KW | 4kw | 8.3rpm | 4590N.m | 0.95 |
| R107F-Y4KW | 4kw | 9rpm | 4220N.m | 1 |
| R107F-Y4KW | 4kw | 10rpm | 3780N.m | 1.15 |
| R107F-Y4KW | 4kw | 11rpm | 3400N.m | 1.25 |
| R107F-Y4KW | 4kw | 12rpm | 3080N.m | 1.4 |
| R107F-Y4KW | 4kw | 14rpm | 2730N.m | 1.6 |
| R107F-Y4KW | 4kw | 15rpm | 2470N.m | 1.75 |
| R107F-Y4KW | 4kw | 18rpm | 2090N.m | 2.1 |
| R107F-Y4KW | 4kw | 20rpm | 1940N.m | 2.2 |
| R107F-Y4KW | 4kw | 22rpm | 1750N.m | 2.5 |
| R107F-Y4KW | 4kw | 24rpm | 1580N.m | 2.7 |
| R107F-Y4KW | 4kw | 27rpm | 1400N.m | 3.1 |
R108減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y5.5KW | 5.5kw | 11rpm | 4640N.m | 0.95 |
| R107F-Y5.5KW | 5.5kw | 12rpm | 4200N.m | 1 |
| R107F-Y5.5KW | 5.5kw | 14rpm | 3720N.m | 1.15 |
| R107F-Y5.5KW | 5.5kw | 16rpm | 3360N.m | 1.3 |
| R107F-Y5.5KW | 5.5kw | 18rpm | 2850N.m | 1.5 |
| R107F-Y5.5KW | 5.5kw | 20rpm | 2640N.m | 1.6 |
| R107F-Y5.5KW | 5.5kw | 22rpm | 2380N.m | 1.8 |
| R107F-Y5.5KW | 5.5kw | 24rpm | 2150N.m | 2 |
| R107F-Y5.5KW | 5.5kw | 27rpm | 1910N.m | 2.2 |
| R107F-Y5.5KW | 5.5kw | 30rpm | 1730N.m | 2.5 |
| R107F-Y5.5KW | 5.5kw | 36rpm | 1460N.m | 2.9 |
R108減速機配7.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y7.5KW | 7.5kw | 16rpm | 4590N.m | 0.95 |
| R107F-Y7.5KW | 7.5kw | 18rpm | 3890N.m | 1.1 |
| R107F-Y7.5KW | 7.5kw | 20rpm | 3610N.m | 1.2 |
| R107F-Y7.5KW | 7.5kw | 22rpm | 3250N.m | 1.3 |
| R107F-Y7.5KW | 7.5kw | 24rpm | 2940N.m | 1.45 |
| R107F-Y7.5KW | 7.5kw | 27rpm | 2610N.m | 1.65 |
| R107F-Y7.5KW | 7.5kw | 30rpm | 2360N.m | 1.8 |
| R107F-Y7.5KW | 7.5kw | 36rpm | 2000N.m | 2.2 |
| R107F-Y7.5KW | 7.5kw | 41rpm | 1740N.m | 2.5 |
| R107F-Y7.5KW | 7.5kw | 49rpm | 1460N.m | 2.9 |
| R107F-Y7.5KW | 7.5kw | 47rpm | 1520N.m | 2.8 |
| R107F-Y7.5KW | 7.5kw | 52rpm | 1360N.m | 3.2 |
| R107F-Y7.5KW | 7.5kw | 58rpm | 1230N.m | 3.5 |
| R107F-Y7.5KW | 7.5kw | 64rpm | 1120N.m | 3.8 |
R108減速機配11KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y11KW | 11kw | 22rpm | 4710N.m | 0.9 |
| R107F-Y11KW | 11kw | 25rpm | 4270N.m | 1 |
| R107F-Y11KW | 11kw | 28rpm | 3790N.m | 1.15 |
| R107F-Y11KW | 11kw | 31rpm | 3420N.m | 1.25 |
| R107F-Y11KW | 11kw | 36rpm | 2900N.m | 1.5 |
| R107F-Y11KW | 11kw | 41rpm | 2530N.m | 1.7 |
| R107F-Y11KW | 11kw | 50rpm | 2120N.m | 2 |
| R107F-Y11KW | 11kw | 47rpm | 2210N.m | 1.95 |
| R107F-Y11KW | 11kw | 53rpm | 1980N.m | 2.2 |
| R107F-Y11KW | 11kw | 59rpm | 1790N.m | 2.4 |
| R107F-Y11KW | 11kw | 65rpm | 1620N.m | 2.6 |
| R107F-Y11KW | 11kw | 73rpm | 1440N.m | 3 |
| R107F-Y11KW | 11kw | 80rpm | 1310N.m | 3.3 |
R108減速機配15KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y15KW | 15kw | 31rpm | 4670N.m | 0.9 |
| R107F-Y15KW | 15kw | 36rpm | 3960N.m | 1.1 |
| R107F-Y15KW | 15kw | 41rpm | 3460N.m | 1.25 |
| R107F-Y15KW | 15kw | 50rpm | 2890N.m | 1.5 |
| R107F-Y15KW | 15kw | 47rpm | 3020N.m | 1.4 |
| R107F-Y15KW | 15kw | 53rpm | 2710N.m | 1.6 |
| R107F-Y15KW | 15kw | 59rpm | 2440N.m | 1.75 |
| R107F-Y15KW | 15kw | 65rpm | 2220N.m | 1.95 |
| R107F-Y15KW | 15kw | 73rpm | 1970N.m | 2.2 |
| R107F-Y15KW | 15kw | 80rpm | 1790N.m | 2.4 |
| R107F-Y15KW | 15kw | 93rpm | 1540N.m | 2.8 |
| R107F-Y15KW | 15kw | 107rpm | 1340N.m | 3.2 |
R108減速機配18.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y18.5KW | 18.5kw | 36rpm | 4880N.m | 0.9 |
| R107F-Y18.5KW | 18.5kw | 41rpm | 4260N.m | 1 |
| R107F-Y18.5KW | 18.5kw | 50rpm | 3560N.m | 1.2 |
| R107F-Y18.5KW | 18.5kw | 59rpm | 3010N.m | 1.45 |
| R107F-Y18.5KW | 18.5kw | 65rpm | 2730N.m | 1.55 |
| R107F-Y18.5KW | 18.5kw | 73rpm | 2420N.m | 1.75 |
| R107F-Y18.5KW | 18.5kw | 80rpm | 2200N.m | 1.95 |
| R107F-Y18.5KW | 18.5kw | 93rpm | 1890N.m | 2.3 |
| R107F-Y18.5KW | 18.5kw | 107rpm | 1650N.m | 2.6 |
| R107F-Y18.5KW | 18.5kw | 126rpm | 1400N.m | 3.1 |
| R107F-Y18.5KW | 18.5kw | 144rpm | 1220N.m | 3.5 |
| R107F-Y18.5KW | 18.5kw | 186rpm | 950N.m | 3.1 |
| R107F-Y18.5KW | 18.5kw | 219rpm | 800N.m | 3.7 |
R108減速機配22KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y22KW | 22kw | 41rpm | 5070N.m | 0.85 |
| R107F-Y22KW | 22kw | 50rpm | 4240N.m | 1 |
| R107F-Y22KW | 22kw | 59rpm | 3580N.m | 1.2 |
| R107F-Y22KW | 22kw | 65rpm | 3280N.m | 1.3 |
| R107F-Y22KW | 22kw | 73rpm | 2880N.m | 1.5 |
| R107F-Y22KW | 22kw | 80rpm | 2620N.m | 1.65 |
| R107F-Y22KW | 22kw | 93rpm | 2250N.m | 1.9 |
| R107F-Y22KW | 22kw | 107rpm | 1960N.m | 2.2 |
| R107F-Y22KW | 22kw | 126rpm | 1660N.m | 2.6 |
| R107F-Y22KW | 22kw | 144rpm | 1450N.m | 3 |
| R107F-Y22KW | 22kw | 170rpm | 1230N.m | 3.5 |
| R107F-Y22KW | 22kw | 186rpm | 1130N.m | 2.6 |
| R107F-Y22KW | 22kw | 219rpm | 950N.m | 3.1 |
| R107F-Y22KW | 22kw | 251rpm | 830N.m | 3.5 |
R108減速機配30KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y30KW | 30kw | 74rpm | 3900N.m | 1.1 |
| R107F-Y30KW | 30kw | 81rpm | 3540N.m | 1.2 |
| R107F-Y30KW | 30kw | 94rpm | 3040N.m | 1.4 |
| R107F-Y30KW | 30kw | 108rpm | 2650N.m | 1.6 |
| R107F-Y30KW | 30kw | 127rpm | 2250N.m | 1.9 |
| R107F-Y30KW | 30kw | 146rpm | 1970N.m | 2.2 |
| R107F-Y30KW | 30kw | 172rpm | 1660N.m | 2.6 |
| R107F-Y30KW | 30kw | 188rpm | 1530N.m | 1.95 |
| R107F-Y30KW | 30kw | 221rpm | 1290N.m | 2.3 |
| R107F-Y30KW | 30kw | 253rpm | 1130N.m | 2.6 |
| R107F-Y30KW | 30kw | 300rpm | 960N.m | 3 |
R108減速機配37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y37KW | 45kw | 95rpm | 4540N.m | 0.95 |
| R107F-Y37KW | 45kw | 108rpm | 3960N.m | 1.1 |
| R107F-Y37KW | 45kw | 128rpm | 3360N.m | 1.3 |
| R107F-Y37KW | 45kw | 146rpm | 2940N.m | 1.45 |
| R107F-Y37KW | 45kw | 173rpm | 2480N.m | 1.75 |
| R107F-Y37KW | 45kw | 188rpm | 2280N.m | 1.3 |
| R107F-Y37KW | 45kw | 222rpm | 1930N.m | 1.55 |
| R107F-Y37KW | 45kw | 254rpm | 1690N.m | 1.75 |
| R107F-Y37KW | 45kw | 301rpm | 1420N.m | 2 |
R108減速機配45KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R107F-Y45KW | 45kw | 95rpm | 4540N.m | 0.95 |
| R107F-Y45KW | 45kw | 108rpm | 3960N.m | 1.1 |
| R107F-Y45KW | 45kw | 128rpm | 3360N.m | 1.3 |
| R107F-Y45KW | 45kw | 146rpm | 2940N.m | 1.45 |
| R107F-Y45KW | 45kw | 173rpm | 2480N.m | 1.75 |
| R107F-Y45KW | 45kw | 188rpm | 2280N.m | 1.3 |
| R107F-Y45KW | 45kw | 222rpm | 1930N.m | 1.55 |
| R107F-Y45KW | 45kw | 254rpm | 1690N.m | 1.75 |
| R107F-Y45KW | 45kw | 301rpm | 1420N.m | 2 |
R108減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

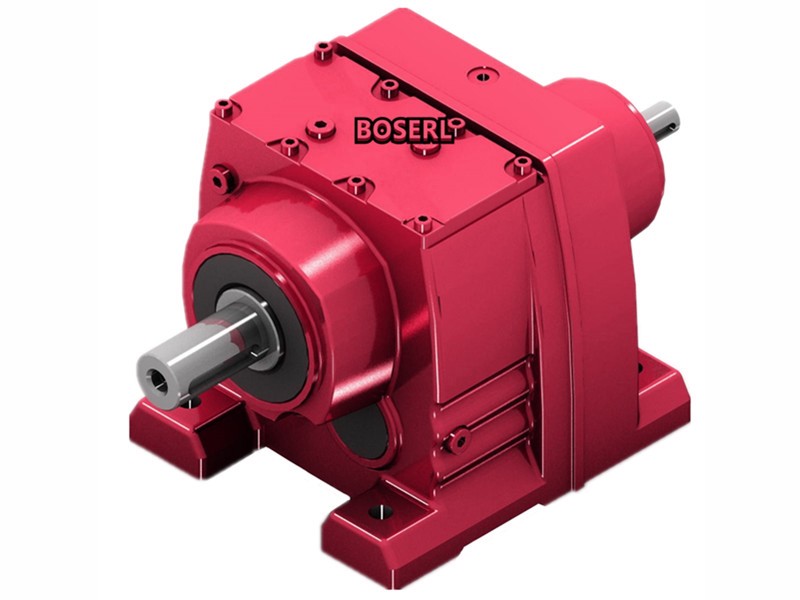

推薦類似型號：R108減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R108減速電機 R107斜齒輪硬齒面減速機 R107減速機功率 R107減速機基座尺寸 R107減速機模型 R107減速機型號參數
