R108減速機詳細信息

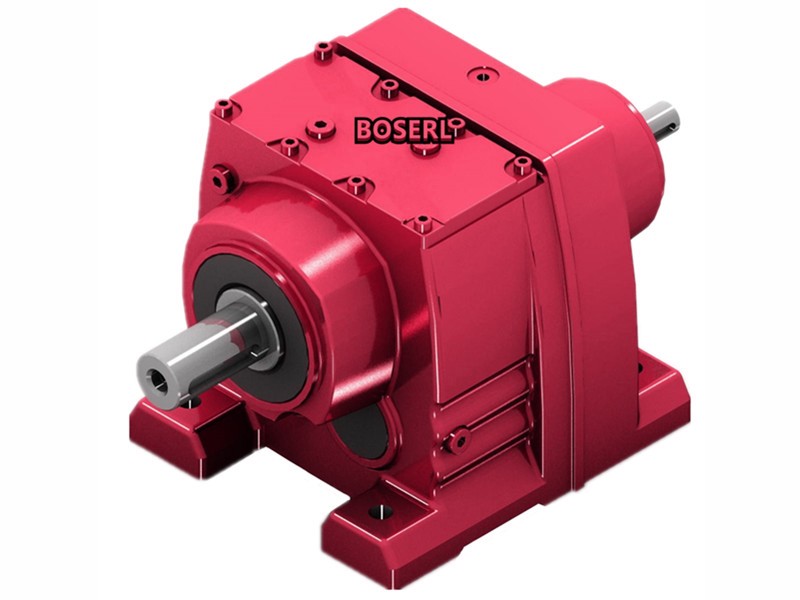

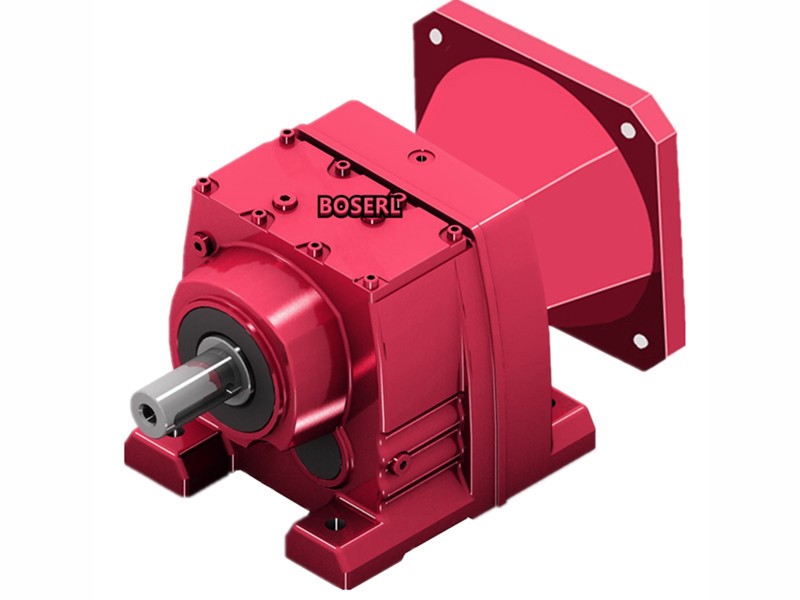

R108減速機
訂購熱線：13360667204
R108減速機傳動比計算：齒輪減速馬達
輸送帶參數：輪子直徑250，負載17噸，一分鐘走9米
9米÷（0.25輪子直徑×3.14）=11.46轉每分鐘
17噸換算成N=170000N
170000×0.125輪子半徑×0.06摩擦系數=1275N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍1275×2=2550N.m
電機轉數1400÷輸出轉數11.46=122.16比
2550N.m輸出扭矩÷122.16比=20.87N.m電機扭矩
20.87N.m電機扭矩換算成功率3.31KW以上
對應的R108減速機選型參數：
型號：R108-B4KW
減速比：127.68
輸出轉數：11轉每分鐘
輸出扭矩：3340N.m
安全系數：1.30
R108減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機
R108臥式硬齒面斜齒輪減速機型號：
R107FDM100L4,R107FDM100LC4,R107FDM100LS4,R107FDM100M4,R107FDM112M4,R107FDM132L4,R107FDM132M4,R107FDM132MC4,R107FDM132ML4,R107FDM132S4,R107FDM160L4,R107FDM160M4,R107FDM160MC4,R107FDM160S4,R107FDM180L4,R107FDM180LC4,R107FDM180M4,R107FDM180S4,R107FDM200L4,R107FDM225M4,R107FDM225S4,R107FDM90L4,R107FDM90M4,R107FDM90S4,R107FDR100L4,R107FDR100LC4,R107FDR100LS4,R107FDR100M4,R107FDR112M4,R107FDR132L4,R107FDR132M4,R107FDR132MC4,R107FDR132ML4,R107FDR132S4,R107FDR160L4,R107FDR160M4,R107FDR160MC4,R107FDR160S4,R107FDR180L4,R107FDR180LC4,R107FDR180M4,R107FDR180S4,R107FDR200L4,R107FDR225M4,R107FDR225S4,R107FDR90L4,R107FDR90M4,R107FDR90S4,R107FDRE100L4,R107FDRE100LC4,R107FDRE100LS4,R107FDRE100M4,R107FDRE112M4,R107FDRE132L4,R107FDRE132M4,R107FDRE132MC4,R107FDRE132ML4,R107FDRE132S4,R107FDRE160L4,R107FDRE160M4,R107FDRE160MC4,R107FDRE160S4,R107FDRE180L4,R107FDRE180LC4,R107FDRE180M4,R107FDRE180S4,R107FDRE200L4,R107FDRE225M4,R107FDRE225S4,R107FDRE90L4,R107FDRE90M4,R107FDRE90S4,R107FDRN100L4,R107FDRN100LC4,R107FDRN100LS4,R107FDRN100M4,R107FDRN112M4,R107FDRN132L4,R107FDRN132M4,R107FDRN132MC4,R107FDRN132ML4,R107FDRN132S4,R107FDRN160L4,R107FDRN160M4,R107FDRN160MC4,R107FDRN160S4,R107FDRN180L4,R107FDRN180LC4,R107FDRN180M4,R107FDRN180S4,R107FDRN200L4,R107FDRN225M4,R107FDRN225S4,R107FDRN90L4,R107FDRN90M4,R107FDRN90S4,R107FDRS100L4,R107FDRS100LC4,R107FDRS100LS4,R107FDRS100M4,R107FDRS112M4,R107FDRS132L4,R107FDRS132M4,R107FDRS132MC4,R107FDRS132ML4,R107FDRS132S4,R107FDRS160L4,R107FDRS160M4,R107FDRS160MC4,R107FDRS160S4,R107FDRS180L4,R107FDRS180LC4,R107FDRS180M4,R107FDRS180S4,R107FDRS200L4,R107FDRS225M4,R107FDRS225S4,R107FDRS90L4,R107FDRS90M4,R107FDRS90S4,R107FDT100L4,R107FDT100LC4,R107FDT100LS4,R107FDT100M4,R107FDT112M4,R107FDT132L4,R107FDT132M4,R107FDT132MC4,R107FDT132ML4,R107FDT132S4,R107FDT160L4,R107FDT160M4,R107FDT160MC4,R107FDT160S4,R107FDT180L4,R107FDT180LC4,R107FDT180M4,R107FDT180S4,R107FDT200L4,R107FDT225M4,R107FDT225S4,R107FDT90L4,R107FDT90M4,R107FDT90S4,R107FDV100L4,R107FDV100LC4,R107FDV100LS4,R107FDV100M4,R107FDV112M4,R107FDV132L4,R107FDV132M4,R107FDV132MC4,R107FDV132ML4,R107FDV132S4,R107FDV160L4,R107FDV160M4,R107FDV160MC4,R107FDV160S4,R107FDV180L4,R107FDV180LC4,R107FDV180M4,R107FDV180S4,R107FDV200L4,R107FDV225M4,R107FDV225S4,R107FDV90L4,R107FDV90M4,R107FDV90S4,R107FDVE100L4,R107FDVE100LC4,R107FDVE100LS4,R107FDVE100M4,R107FDVE112M4,R107FDVE132L4,R107FDVE132M4,R107FDVE132MC4,R107FDVE132ML4,R107FDVE132S4,R107FDVE160L4,R107FDVE160M4,R107FDVE160MC4,R107FDVE160S4,R107FDVE180L4,R107FDVE180LC4,R107FDVE180M4,R107FDVE180S4,R107FDVE200L4,R107FDVE225M4,R107FDVE225S4,R107FDVE90L4,R107FDVE90M4,R107FDVE90S4,R107F-Y1.5KW,R107F-Y100M4,R107F-Y112M4,R107F-Y11KW,R107F-Y132M4,R107F-Y15KW,R107F-Y160M4,R107F-Y18.5KW,R107F-Y180M4,R107F-Y2.2KW,R107F-Y200M4,R107F-Y225M4,R107F-Y22KW,R107F-Y30KW,R107F-Y37KW,R107F-Y3KW,R107F-Y45KW,R107F-Y4KW,R107F-Y5.5KW,R107F-Y7.5KW,R107F-Y90M4,R107F-YEJ1.5KW,R107F-YEJ100M4,R107F-YEJ112M4,R107F-YEJ11KW,R107F-YEJ132M4,R107F-YEJ15KW,R107F-YEJ160M4,R107F-YEJ18.5KW,R107F-YEJ180M4,R107F-YEJ2.2KW,R107F-YEJ200M4,R107F-YEJ225M4,R107F-YEJ22KW,R107F-YEJ30KW,R107F-YEJ37KW,R107F-YEJ3KW,R107F-YEJ45KW,R107F-YEJ4KW,R107F-YEJ5.5KW,R107F-YEJ7.5KW,R107F-YEJ90M4,R107F-YVP1.5KW,R107F-YVP100M4,R107F-YVP112M4,R107F-YVP11KW,R107F-YVP132M4,R107F-YVP15KW,R107F-YVP160M4,R107F-YVP18.5KW,R107F-YVP180M4,R107F-YVP2.2KW,R107F-YVP200M4,R107F-YVP225M4,R107F-YVP22KW,R107F-YVP30KW,R107F-YVP37KW,R107F-YVP3KW,R107F-YVP45KW,R107F-YVP4KW,R107F-YVP5.5KW,R107F-YVP7.5KW,R107F-YVP90M4,R107F-YVPEJ1.5KW,R107F-YVPEJ100M4,R107F-YVPEJ112M4,R107F-YVPEJ11KW,R107F-YVPEJ132M4,R107F-YVPEJ15KW,R107F-YVPEJ160M4,R107F-YVPEJ18.5KW,R107F-YVPEJ180M4,R107F-YVPEJ2.2KW,R107F-YVPEJ200M4,R107F-YVPEJ225M4,R107F-YVPEJ22KW,R107F-YVPEJ30KW,R107F-YVPEJ37KW,R107F-YVPEJ3KW,R107F-YVPEJ45KW,R107F-YVPEJ4KW,R107F-YVPEJ5.5KW,R107F-YVPEJ7.5KW,R107F-YVPEJ90M4。
R107系列減速機參數大全：同軸斜齒輪減速電機
R107F減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y2.2KW | 251.15 | 2.2kw | 180kg | 32100N |
| R107F-Y2.2KW | 229.95 | 2.2kw | 180kg | 33400N |
| R107F-Y2.2KW | 203.16 | 2.2kw | 180kg | 34800N |
| R107F-Y2.2KW | 172.34 | 2.2kw | 180kg | 36000N |
| R107F-Y2.2KW | 158.68 | 2.2kw | 180kg | 36300N |
| R107F-Y2.2KW | 141.83 | 2.2kw | 180kg | 36600N |
| R107F-Y2.2KW | 127.68 | 2.2kw | 180kg | 36900N |
| R107F-Y2.2KW | 115.63 | 2.2kw | 180kg | 37000N |
| R107F-Y2.2KW | 102.53 | 2.2kw | 180kg | 37200N |
| R107F-Y2.2KW | 92.7 | 2.2kw | 180kg | 37300N |
R107F減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y3KW | 229.95 | 3kw | 185kg | 26500N |
| R107F-Y3KW | 203.16 | 3kw | 185kg | 30200N |
| R107F-Y3KW | 172.34 | 3kw | 185kg | 33100N |
| R107F-Y3KW | 158.68 | 3kw | 185kg | 34100N |
| R107F-Y3KW | 141.83 | 3kw | 185kg | 35200N |
| R107F-Y3KW | 127.68 | 3kw | 185kg | 36000N |
| R107F-Y3KW | 115.63 | 3kw | 185kg | 36300N |
| R107F-Y3KW | 102.53 | 3kw | 185kg | 36700N |
| R107F-Y3KW | 92.7 | 3kw | 185kg | 36900N |
| R107F-Y3KW | 78.57 | 3kw | 185kg | 35900N |
| R107F-Y3KW | 72.88 | 3kw | 185kg | 35200N |
R107F減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y4KW | 172.34 | 4kw | 195kg | 27800N |
| R107F-Y4KW | 158.68 | 4kw | 195kg | 29900N |
| R107F-Y4KW | 141.83 | 4kw | 195kg | 32000N |
| R107F-Y4KW | 127.68 | 4kw | 195kg | 33600N |
| R107F-Y4KW | 115.63 | 4kw | 195kg | 34700N |
| R107F-Y4KW | 102.53 | 4kw | 195kg | 35800N |
| R107F-Y4KW | 92.7 | 4kw | 195kg | 36200N |
| R107F-Y4KW | 78.57 | 4kw | 195kg | 34800N |
| R107F-Y4KW | 72.88 | 4kw | 195kg | 34100N |
| R107F-Y4KW | 65.6 | 4kw | 195kg | 33100N |
| R107F-Y4KW | 59.41 | 4kw | 195kg | 32200N |
| R107F-Y4KW | 52.68 | 4kw | 195kg | 31200N |
R107F減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y5.5KW | 127.68 | 5.5kw | 200kg | 27500N |
| R107F-Y5.5KW | 115.63 | 5.5kw | 200kg | 30000N |
| R107F-Y5.5KW | 102.53 | 5.5kw | 200kg | 32200N |
| R107F-Y5.5KW | 92.7 | 5.5kw | 200kg | 33700N |
| R107F-Y5.5KW | 78.57 | 5.5kw | 200kg | 33400N |
| R107F-Y5.5KW | 72.88 | 5.5kw | 200kg | 32800N |
| R107F-Y5.5KW | 65.6 | 5.5kw | 200kg | 32000N |
| R107F-Y5.5KW | 59.41 | 5.5kw | 200kg | 31200N |
| R107F-Y5.5KW | 52.68 | 5.5kw | 200kg | 30200N |
| R107F-Y5.5KW | 47.63 | 5.5kw | 200kg | 29400N |
| R107F-Y5.5KW | 40.37 | 5.5kw | 200kg | 28200N |
R107F減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y7.5KW | 92.7 | 7.5kw | 215kg | 27800N |
| R107F-Y7.5KW | 78.57 | 7.5kw | 215kg | 31500N |
| R107F-Y7.5KW | 72.88 | 7.5kw | 215kg | 31200N |
| R107F-Y7.5KW | 65.6 | 7.5kw | 215kg | 30600N |
| R107F-Y7.5KW | 59.41 | 7.5kw | 215kg | 29900N |
| R107F-Y7.5KW | 52.68 | 7.5kw | 215kg | 29100N |
| R107F-Y7.5KW | 47.63 | 7.5kw | 215kg | 28400N |
| R107F-Y7.5KW | 40.37 | 7.5kw | 215kg | 27300N |
| R107F-Y7.5KW | 35.26 | 7.5kw | 215kg | 26300N |
| R107F-Y7.5KW | 29.44 | 7.5kw | 215kg | 25100N |
| R107F-Y7.5KW | 30.77 | 7.5kw | 215kg | 25400N |
| R107F-Y7.5KW | 27.58 | 7.5kw | 215kg | 24700N |
| R107F-Y7.5KW | 24.9 | 7.5kw | 215kg | 24000N |
| R107F-Y7.5KW | 22.62 | 7.5kw | 215kg | 23400N |
R107F減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y11KW | 65.6 | 11kw | 235kg | 26000N |
| R107F-Y11KW | 59.41 | 11kw | 235kg | 27600N |
| R107F-Y11KW | 52.68 | 11kw | 235kg | 27000N |
| R107F-Y11KW | 47.63 | 11kw | 235kg | 26500N |
| R107F-Y11KW | 40.37 | 11kw | 235kg | 25700N |
| R107F-Y11KW | 35.26 | 11kw | 235kg | 24900N |
| R107F-Y11KW | 29.44 | 11kw | 235kg | 23900N |
| R107F-Y11KW | 30.77 | 11kw | 235kg | 24200N |
| R107F-Y11KW | 27.58 | 11kw | 235kg | 23600N |
| R107F-Y11KW | 24.9 | 11kw | 235kg | 23000N |
| R107F-Y11KW | 22.62 | 11kw | 235kg | 22400N |
| R107F-Y11KW | 20.07 | 11kw | 235kg | 21700N |
| R107F-Y11KW | 18.21 | 11kw | 235kg | 21200N |
R107F減速機配15KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y15KW | 47.63 | 15kw | 270kg | 24500N |
| R107F-Y15KW | 40.37 | 15kw | 270kg | 23900N |
| R107F-Y15KW | 35.26 | 15kw | 270kg | 23400N |
| R107F-Y15KW | 29.49 | 15kw | 270kg | 22600N |
| R107F-Y15KW | 30.77 | 15kw | 270kg | 22800N |
| R107F-Y15KW | 27.58 | 15kw | 270kg | 22300N |
| R107F-Y15KW | 24.9 | 15kw | 270kg | 21900N |
| R107F-Y15KW | 22.62 | 15kw | 270kg | 21400N |
| R107F-Y15KW | 20.07 | 15kw | 270kg | 20900N |
| R107F-Y15KW | 18.21 | 15kw | 270kg | 20400N |
| R107F-Y15KW | 15.65 | 15kw | 270kg | 19700N |
| R107F-Y15KW | 13.66 | 15kw | 270kg | 19000N |
R107F減速機配18.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y18.5KW | 40.37 | 18.5kw | 285kg | 19400N |
| R107F-Y18.5KW | 35.26 | 18.5kw | 285kg | 22100N |
| R107F-Y18.5KW | 29.49 | 18.5kw | 285kg | 21500N |
| R107F-Y18.5KW | 24.9 | 18.5kw | 285kg | 20900N |
| R107F-Y18.5KW | 22.62 | 18.5kw | 285kg | 20600N |
| R107F-Y18.5KW | 20.07 | 18.5kw | 285kg | 20100N |
| R107F-Y18.5KW | 18.21 | 18.5kw | 285kg | 19700N |
| R107F-Y18.5KW | 15.65 | 18.5kw | 285kg | 19100N |
| R107F-Y18.5KW | 13.66 | 18.5kw | 285kg | 18500N |
| R107F-Y18.5KW | 11.59 | 18.5kw | 285kg | 17800N |
| R107F-Y18.5KW | 10.13 | 18.5kw | 285kg | 17200N |
| R107F-Y18.5KW | 7.86 | 18.5kw | 285kg | 16300N |
| R107F-Y18.5KW | 6.66 | 18.5kw | 285kg | 15600N |
R107F減速機配22KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y22KW | 35.26 | 22kw | 305kg | 4470N |
| R107F-Y22KW | 29.49 | 22kw | 305kg | 20400N |
| R107F-Y22KW | 24.9 | 22kw | 305kg | 20000N |
| R107F-Y22KW | 22.62 | 22kw | 305kg | 19700N |
| R107F-Y22KW | 20.07 | 22kw | 305kg | 19400N |
| R107F-Y22KW | 18.21 | 22kw | 305kg | 19000N |
| R107F-Y22KW | 15.65 | 22kw | 305kg | 18500N |
| R107F-Y22KW | 13.66 | 22kw | 305kg | 18000N |
| R107F-Y22KW | 11.59 | 22kw | 305kg | 17300N |
| R107F-Y22KW | 10.13 | 22kw | 305kg | 16800N |
| R107F-Y22KW | 8.56 | 22kw | 305kg | 16100N |
| R107F-Y22KW | 7.86 | 22kw | 305kg | 16100N |
| R107F-Y22KW | 6.66 | 22kw | 305kg | 15400N |
| R107F-Y22KW | 5.82 | 22kw | 305kg | 14800N |
R107F減速機配30KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y30KW | 20.07 | 30kw | 400kg | 17600N |
| R107F-Y30KW | 18.21 | 30kw | 400kg | 17400N |
| R107F-Y30KW | 15.65 | 30kw | 400kg | 17100N |
| R107F-Y30KW | 13.66 | 30kw | 400kg | 16800N |
| R107F-Y30KW | 11.59 | 30kw | 400kg | 16300N |
| R107F-Y30KW | 10.13 | 30kw | 400kg | 15900N |
| R107F-Y30KW | 8.56 | 30kw | 400kg | 15400N |
| R107F-Y30KW | 7.86 | 30kw | 400kg | 15500N |
| R107F-Y30KW | 6.66 | 30kw | 400kg | 14900N |
| R107F-Y30KW | 5.82 | 30kw | 400kg | 14400N |
| R107F-Y30KW | 4.92 | 30kw | 400kg | 13700N |
R107F減速機配37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y37KW | 15.65 | 45kw | 450kg | 14600N |
| R107F-Y37KW | 13.66 | 45kw | 450kg | 14600N |
| R107F-Y37KW | 11.59 | 45kw | 450kg | 14400N |
| R107F-Y37KW | 10.13 | 45kw | 450kg | 14300N |
| R107F-Y37KW | 8.56 | 45kw | 450kg | 14000N |
| R107F-Y37KW | 7.86 | 45kw | 450kg | 14400N |
| R107F-Y37KW | 6.66 | 45kw | 450kg | 13900N |
| R107F-Y37KW | 5.82 | 45kw | 450kg | 13600N |
| R107F-Y37KW | 4.92 | 45kw | 450kg | 13000N |
R107F減速機配45KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R107F-Y45KW | 15.65 | 45kw | 450kg | 14600N |
| R107F-Y45KW | 13.66 | 45kw | 450kg | 14600N |
| R107F-Y45KW | 11.59 | 45kw | 450kg | 14400N |
| R107F-Y45KW | 10.13 | 45kw | 450kg | 14300N |
| R107F-Y45KW | 8.56 | 45kw | 450kg | 14000N |
| R107F-Y45KW | 7.86 | 45kw | 450kg | 14400N |
| R107F-Y45KW | 6.66 | 45kw | 450kg | 13900N |
| R107F-Y45KW | 5.82 | 45kw | 450kg | 13600N |
| R107F-Y45KW | 4.92 | 45kw | 450kg | 13000N |
R108減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R98減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
